Air Conditioning

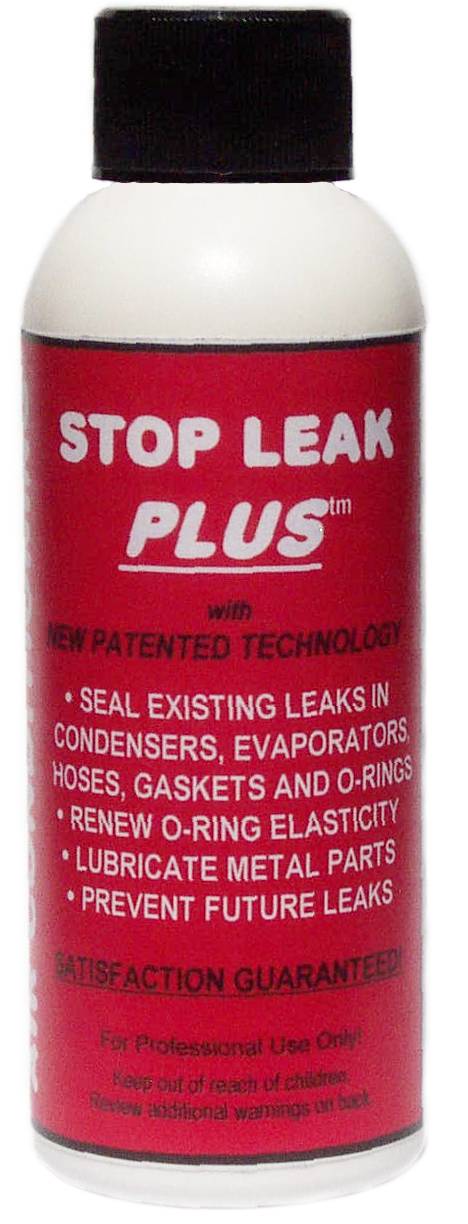

AC Stop Leak Plus tm

A/C Products by GWR Automotive Products

#1 Choice of Professional / Commercial Installers Worldwide!





Vehicles

Automobiles, Trucks,
Agricultural

R12 and 134A



HVAC
Commercial, Industrial, Residential

R22 and 410A


They'd all love to duplicate our exclusive formula,
fortunately for your sake and ours it's patented and protected!



Our unique additives lubricate all moving metal parts in the AC system, while revitalizing O-Ring elasticity. More remarkably though, they seal hard to find leaks in evaporators, condensers, hoses and other difficult to repair AC components.  Don't spend hundred or even thousands to replace expensive parts only to find out you missed a small pin hole else ware and now all the new gas has leaked out.

Stop Leak Plus can be use as a tune-up conditioner during a Freon top-off when components are in overall good shape, or as a complete system rejuvenator when Freon and oil are added during a major repair or service.

Programs are available for all levels of distribution to professional technicians, from single cases for automotive applications to gallon containers for HVAC commercial use.  We even offer the specialized tools needed for installation, simply scrolling down the page to learn more about them.


 For those of you wondering,
GWR Stop Leak Plus is not activated by air or moisture like the common products found at the AutoParts store or HVAC supply houses!

It is not polymer based, will not harden and simply remains as a base oil in the system after installation.

Please note that if a sealer comes in a pressurized can,
you don't want to use it.  Period!  They all set by moisture and that means they will clog a system and or recycling machine once they touch air in either unit.


This product in not like all the others that claim to seal A/C leaks...

We do not react to moisture and therefore do not come in a sealed,  pressurized can that sometimes hardens while you are trying to install it.  Additionally, this product will not clog installation equipment or the recycling machines needed to remove gasses from systems being serviced.  Take a look at this picture and you will see why the products in pressurized can are not only a problem for a recycling machine but also the system itself.

Don't let this happen to you recycling machine or worse, the vehicle itself.



The end view of a solenoid valve from an evacuation machine, notice the hardened particles of another stop leak product.  These granular particulate float around in the system until they attach to a part or get trapped in a filter or expansion valve.  When that happens, system efficiency is reduced or even stopped and another repair is required to remove the bad sealer and the parts that have been damaged.

Easily visible, hardened inferior stop leak product.




How ours is different and why it works...

Three elements are necessary for initial activation of GWR's Stop Leak Plus.... the Refrigerant, the system pressure and movement or flow velocity.  Our unique product physically changes when these elements are all present, thereby "activating" it's properties.  When a leak occurs, whether pre-existing or in the future, refrigerant and some oil escapes through the hole at a rapid rate of speed creating a venturi action.  This high speed flow allows some of the activated Super Stop Leak Plus to likewise pull through.  When these escaping molecules bombard the ragged edges of the hole they begin to attach to the area and each other, eventually forming a seal or patch.  Because Super Stop Leak was formulated to stay flexible and pliable after the seal is created, it will remain secure through years of on and off temperature cycles in and HVAC system or engine/vehicle vibrations in automotive use.


Simply stated... This is the finest
Air Conditioning Stop Leak product on the market!  It's sold worldwide!


Note: One gallon of SLP can treat
60 to over 100 residential units




Note:  A single bottle of either 134a or R12
SLP will treat one average size vehicle


It will seal irritating, pesky, hidden leaks
and eliminate costly service comebacks.



Still concerned about using Stop Leak Plus?

We believe this expert testimony definitively answers the question everyone with a leak eventually asks.


When ask "Will a Stop Leak Sealer cause damage to A/C Systems?"


Prof. Tom Brown, Centennial College, Climate Control Dept., Toronto, Ont., Canada, owner of Dealerman Wholesalers (Remanufacturer of AC Compressors), founder of AC Canada and technical air conditioning advisor to Spectra Premium Industries (OE Mfg of Climate Control Products) replied....


"Since the introduction of AC sealers several years ago, we noticed a drop in evaporator sales but an increase in compressor sales, especially for older vehicles.

I attribute that to the fact that a sealer makes an AC job affordable when there is a leaky evaporator and compressor.  Since the sealers do a good job on evaporator leaks, but won't seal compressor shaft seals, we are finding customers generally authorize a replacement compressor and the stop leak sealant.

In my examination of over 2,000 returned compressors over the years, I have not noticed a significant problem with sealants.  In fact, less than ten units showed congealed sealant at all.  Upon closer examination, in only a few cases could the congealed sealant be determined to be the cause of the failure.  And this was no doubt due to the technician failing to replace the dryer and leaving moisture in the system during servicing.

Additionally, in just the last 3 month summer sales season, we sold over 460 compressors and did not receive even a single return due to sealers."


Thank you Prof. Brown, I don't think it could be stated any clearer....

Stop Leak products should not be blamed for failures in systems after they are installed because most problems can be traced to technicians or DIY'ers improperly preparing systems before their installation.





IMPORTANT MESSAGE for CONSUMERS:

Because of time and personnel limitations, we are not able to suggest local shops in your area that install stop leak products.  If you need your system to be sealed, we suggest you call local service companies and ask if they have a service available that uses GWR's A/C Stop Leak Plus.

Please note that SLP is a professional product and is not intended for DIY consumer installation, special service tools and a thorough working knowledge of A/C repair are required.  As such, we "do not" have single application bottles available for Consumers / DIY customers.  Before calling us, we suggest you contact a local A/C repair shop for a professional install when you do not have the proper training or the necessary tools.
(For more information, please see FAQ's below).


Additionally...

Due to DOT / UPS / FEDEX / USPS shipping restrictions on chemicals in general, we do not sell single application bottles of our Super Stop Leak Plus.

Minimum Automotive Order - 1 Case of 6 Bottles (R12 or 134)
Minimum Residential / Commercial Order
- 1 Gallon (R22 or 410)



If we have not answered your questions so far, scroll down the page to our FAQ section.  Additionally, please feel free to call and speak to a tech support person.

Tech Support and Order Line...  1 (800) 266-4497  (2pm to 8pm EST)



SUPER STOP LEAK PLUS tm prevents comebacks, period!
That means more profit for installers and no headaches for consumers.

GWR’s new SUPER STOP LEAK "Plus" is specifically formulated to prevent leaks and repair existing leaks... while revitalizing gaskets and o-rings with patented lubricates. Because of its liquid consistency, you install it just like standard A/C oil.  A technician simply uses an A/C oil injector tool to install through the low side service port but you can also draw it through the center tap on a set of manifold gauges, if you prefer. This means the system does not need to be evacuated to use our product, another time saver! Simply start the engine or system, turn the A/C to maximum cooling, install SUPER STOP LEAK "Plus" and recharge the system with R-134A, R-12, R22 or R410A as per the service manual. Make it part of your maintenance service... add SUPER STOP LEAK "Plus" to every A/C service and keep systems at optimum performance levels.


Basic Installation Configuration




A basic 2oz oil injector is placed inline with the low side hose, (after the gages),
so the new freon flows through it and carries the Stop Leak Plus into the system.



Frequently Ask Questions and the Answers:


IMPORTANT:
Can a consumer install GWR's Stop Leak Plus?

This professional product is not something you can buy at a local auto parts store, or take home for a simple installation. On the other hand, a mechanically inclined person could use the Super Stop Leak Plus if they are familiar with A/C repair and have the required tools necessary to test and install the product correctly.  At the very minimum, you will need the oil injector tool used by shops for the last 30 years, to put refrigerant oil into A/C systems.   Additionally, you should have a set of manifold gauges and a pump to pull the vacuum for testing leak down time.

Oil injector tool for installation of GWR Stop Leak Plus

Please note that if you don't have or can't borrow a professional installation tool like this one, it's impossible to install GWR's Stop Leak Plus.  Our product is not a "Do It Yourself" sealer with throw away, quick connect hoses like those the Auto Parts store sells, you must have someone with professional knowledge do the service.

This extremely high quality, professional tool is available from GWR, for under $50.
Please specify R12 or 134A models or both    Note: Actual shipped tool may vary slightly from picture.

How does it work?

Super Stop Leak Plus is an inert liquid until it mixes with all Freon gases. Once installed in a closed circuit, it activates based on several conditions present in the system.  As it begins to travel with the gases, it seeks out leaks and migrates through small holes to the outside air.  During the migration through the hole, it begins to build and then congeal to form a chemical weld that seals the leak.  This "patch" never hardens, but remains pliable so it can flex with expansion and contraction of a system.

How large a leak will it repair
?

In general, Super Stop Leak Plus is designed to seal an A/C system that has slow leaks, taking weeks or months to show up.  The system must be able to hold a vacuum on the low side for 45 minutes, at a minimum.  If the vacuum leaks out or changes, within an hour, the hole is too large to be sealed and manual repairs need to be made.

Will it seal evaporator leaks
?

Yes, plus it will also seal leaks in the condenser.  Additionally, the special oils will rejuvenate all connection hoses, gaskets and o-rings.   The only part of a system where a leak can not be repaired is a compressor shaft seal.  All seals are designed in a way that leaks are inevitable because shafts that go through them, continually turns at the seal's mating lip.

How much do I use?

One 2 oz. bottle is all that is necessary to seal and condition one average size vehicle’s A/C system. When adding Super Stop Leak Plus to an evacuated empty system, substitute one bottle of Super Stop Leak Plus for 2 oz. of the regular A/C oil. (i.e. A 10 oz regular fill is now 8 oz's oil and one bottle of Super Stop Leak Plus). If the vehicle has a slow leak but still has a partial charge at service time, simply add one bottle of Super Stop Leak Plus along with the required amount of refrigerant until the system meets factory specs for a new charge. (Per service manual specifications)

Is it available for both R-134A and R-12 systems
?

Yes! There is a Super Stop Leak Plus for both R-12 and 134A A/C systems, plus it works with blended refrigerants as well.  Be sure to specify either the R-12 or 134A version when dealing with automotive applications, to match system being serviced.

What about commercial or home A/C systems?

We do have additional formulas for home, commercial and industrial refrigeration systems.  These unique products are revolutionary and just as easy to use as our automotive versions.  Product specific versions for R22 and R410A are available in bulk gallons, for installation by professional service companies.  (Please note we do not have single application bottles available for consumers, or DIY customers.)

We encourage professional installers to order one of these incredible tools, they are simple and the fastest way to inject our Super Stop Leak Plus additive.  Best of all you don't have to bring down a system, you can inject at full system pressure based on the seal system in the high pressure pump.  Additionally, the reservoir bottle holds 16 ounces of SLP, so you do not have to stop and refill (smaller tools) when you need to put 3, 5, 10 or more ounces into one unit.
Call GWR Products for price and available
.


How long will it stay in the system
?

Super Stop Leak Plus forms a permanent repair when it comes into contact with venturi flow, specific temperatures, pressure, refrigerant and other parameters at one specific location. If there are no leaks in the system and you’re installing it for preventative maintenance, the product simply remains a high quality liquid lubricant until a leak is detected. Every vehicle should have a bottle installed when a major repair is performed but also on systems with no problems.  It is the cheapest insurance you can buy!

What happens when I recycle the refrigerant
?

Super Stop Leak Plus is removed from the A/C system with the refrigerant during standard recycling procedures. It separates from the refrigerant during evacuation and joins the reclaimed oil.  Since it flows, is an oil and does not harden in a system, it will not harm or clog recycling machines during transitions.

How long has the product been on the market?  Does it really work?

The Super Stop Leak Plus has been sold to the professional installer for over 15 years and installation problems are virtually non existent.  The few complaints we have received are always from installers who fail to check over the system before installation of the product.  When the holes are just to big or there are too many (will not hold a steady vacuum for 45 minutes), even our unique, patented sealant, may not repair a leaky system.  Rely on the best sealer in the business, we guarantee there's not a better one available... anywhere in the world!


Due to blatant attempts to copy our unique, patented product and literature, GWR, owner of the AC Stop Leak Plus brand,
hereby posts Legal Notice... AC Stop Leak Plus is a Trademark of GWR Specialty Automotive Products

Any unauthorized use of the name or copyrighted materials from this site will be subject to
federal prosecution and adjudicated compensation for damages of punitive and or
compensatory nature!

Disclaimer:
Stop leaks such as Supecool's Total Leak Stop, Bar's A/C Stop Leak & Sealer, UView's AC Stop Leak Plus, FJC's Air Conditioning Stop Leak and other less famous brand name products, are unauthorized copies of the patented formula sold by GWR under the name AC Stop Leak Plus.  Likewise, because these products do not match the technical specifications of the unique, proprietary formula, they do not have our endorsement or approval.
Total Leak Stop, A/C Stop Leak & Sealer, Air Conditioning Stop Leak and AC Stop Leak Plus are trade marks of their respective owners.
