MAXI-JECT


  Maxi-Ject
Use Heavy Duty
Rebuildable Yes
Max. Hydraulic (+) PSI 160
Max. Air (+) PSI 80
Max. Vacuum (-)" HG -20
Injection Stroke 10 ml
Adjustable Dosage Yes
Hi-Fluid Viscosities (thick) No
Hand Force (1=Easiest) 1
Adjustable Return Force Yes
Handle Pivot
Standard Color Black
Feature Rating (10=Highest) 9
Features





Description

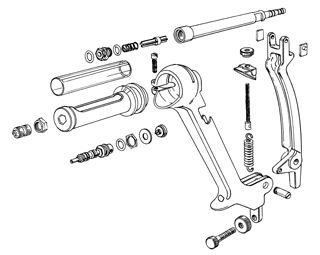

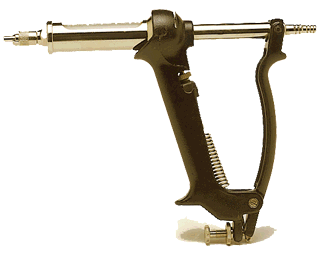

The Maxi-Ject has a very long stroke and small cylinder diameter yielding a high hydraulic advantage capable of generating pressures in excess of 160 PSI, the highest of all our injectors.  The handle operation is very smooth and most comfortable to use with extended use.  The Maxi-Ject is a full metal injector that will last a lifetime.  It is completely rebuildable for years of use.  The return spring force is adjustable for various fluids or applications.  In addition, the dosage is adjustable to fine tune metering applications.  The maximum dosage is 10 ml.  The outlet nozzle will accept our full line of modular fittings.  It is excellent for brake fluid type viscosity fluids.  Because of the Maxi-Ject's inherent design characteristics, it is very useful for other tasks like: flushing injectors, power steering systems, carburetors and much more.

Note: Special seals required for petroleum fluids
